How Shading Affects Solar Panel Output (Philippines)
TL;DR
In a standard string inverter setup, panels are wired in series, so one shaded panel can drag down the output of the entire string by roughly 30-50%, not just its own share. Microinverters and power optimizers isolate each panel electrically, limiting a shading loss to that one panel instead of the whole string.
Shading hits solar output harder than most people expect, because of how panels are wired. In a standard string inverter setup, panels in a string are connected in series, so the whole string’s current is limited by its weakest panel. Shade one panel at 10am when a water tank casts a shadow across it, and that single panel can pull down the output of every other panel in its string by roughly 30-50%, not just its own share. Microinverters and power optimizers fix this by giving each panel its own point of conversion, so a shaded panel’s loss stays contained to that panel.
Why does shading one panel affect the whole string?
Picture a string of panels as a chain: current flows through each panel in sequence, and the whole chain can only carry as much current as its weakest link allows. A shaded panel produces less current, so it becomes the bottleneck for every other panel wired in series with it, even ones sitting in full sun. This is different from how most people picture solar proportional loss (shade 10% of the array, lose 10% of the output). The real relationship is more punishing than that.
How much output do you actually lose from partial shade?
Shading even 10% of a single panel’s surface can cut that string’s output by roughly 30-40% in a traditional string inverter system, and a fully shaded panel can drag a string’s output down by 30-50% or more. The exact number depends on string size, how many panels are shaded, and how the system is wired, but the pattern holds: a small shadow causes a disproportionately large loss when panels share a string.
What do bypass diodes do, and do they fix the problem?
Every panel has bypass diodes built in, small components that reroute current around a shaded section of cells instead of forcing current through them. This protects the panel from overheating and damage, and it limits how badly a shaded panel drags down its string. But bypass diodes don’t eliminate the loss, they manage it. The string still loses meaningful output whenever a diode kicks in, so shading remains a real problem even on a well-built string system.
How do microinverters and optimizers actually help?
Microinverters convert each panel’s output individually, right at the panel, instead of combining panels into a shared string first. Power optimizers sit between the panel and a central inverter, conditioning each panel’s output before it joins the string. Both approaches mean a shaded panel’s loss stays limited to roughly that panel’s own share of production, not the whole string. If a panel is heavily shaded, the system routes around it almost entirely instead of that one panel throttling everything connected to it. For the full breakdown of string, hybrid, and microinverter setups, see our inverter types guide.
Is it worth paying extra for microinverters or optimizers?
Depends on your roof. If your array gets full sun all day with nothing nearby to cast a shadow, a standard string inverter is cheaper and does the job fine. If part of your roof gets shaded by a water tank, a neighboring building, tree branches, or even another section of your own roofline for part of the day, microinverters or optimizers usually pay for the extra upfront cost through the output they save. A site survey should map out where and when shade hits your specific roof before you commit either way.
What typically shades Philippine rooftops?

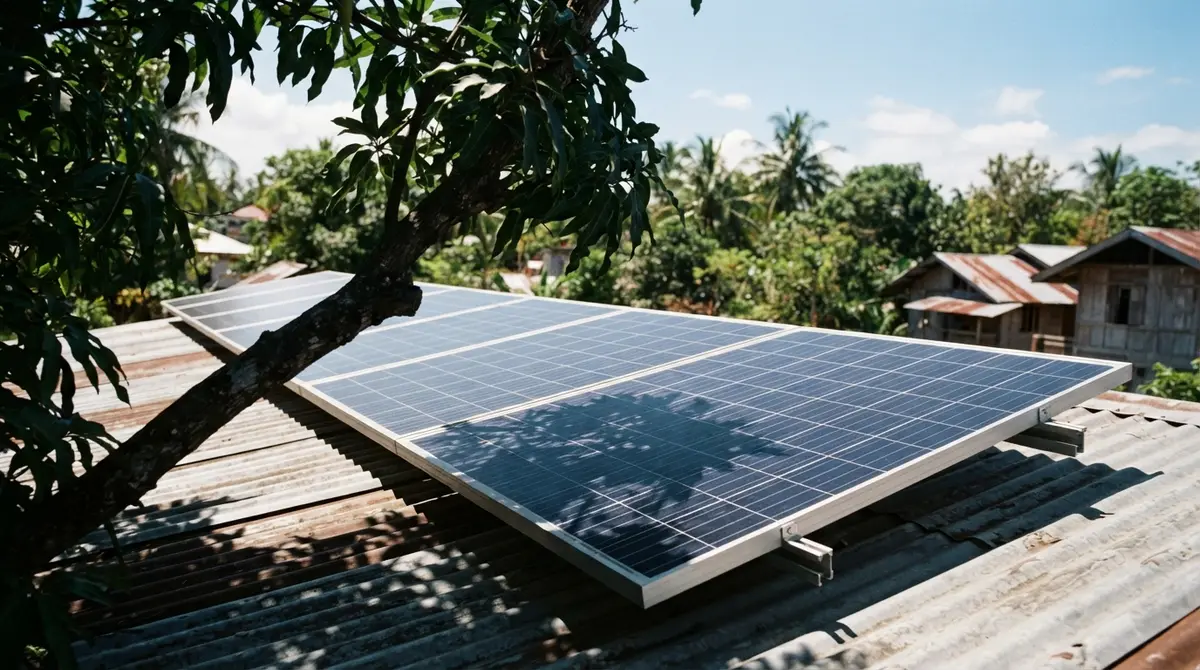

Common culprits: water tanks (a fixture on most PH roofs), trees, taller neighboring structures in dense subdivisions and city lots, roof vents or antennas, and shadows cast by your own roof’s other sections depending on layout. Even shade that only lasts an hour or two, like a morning shadow that moves off the array by mid-morning, cuts output during that window every single day it repeats.
Does panel orientation matter if there’s some shade?
Orientation determines how much sun a panel gets across the day; shading determines whether something blocks that sun at specific hours. They’re separate issues that both need checking. See our guide on which direction solar panels should face for the orientation side, and pair it with a shading check before finalizing your layout.
How does roof space factor into avoiding shade?
A bigger, more open roof gives an installer more room to place panels away from shadow-casting obstacles, or to space the array out to reduce self-shading between rows. If your roof is tight on space, see our guide on how much roof space solar panels need for what to expect before assuming every square meter of your roof is usable.
Frequently asked questions
Does shading one solar panel really affect the whole system?
In a string inverter setup, yes. Panels in a string are wired in series, so the weakest (most shaded) panel limits current for the whole string, cutting that string's output by roughly 30-50% even though only one panel is shaded.
What are bypass diodes and do they fix shading problems?
Bypass diodes are built into every panel to reroute current around a shaded section instead of forcing it through, protecting the panel from damage. They limit the damage but don't eliminate it, since the panel and string still lose meaningful output while the diode is active.
Do microinverters or optimizers actually solve shading?
They isolate each panel's output, so a shaded panel's loss stays limited to that panel instead of dragging down the rest of the string. It's not free, since both options cost more than a standard string inverter, but they're worth it on a roof with any real shading.
What commonly shades Philippine rooftops?
Water tanks, nearby trees, adjacent taller buildings, roof vents, and even other sections of your own roof are the usual culprits. Shading that only lasts an hour or two a day, like a shadow that moves across the array in the morning, still cuts output during that window.
Should I avoid solar if my roof has some shade?
Not necessarily. Light or partial shade on part of the day is common and manageable, especially with microinverters or optimizers. Heavy shade for most of the day on most of the array is a bigger problem worth discussing with an installer before committing to a system size.
Does panel orientation reduce shading issues?
Orientation and shading are related but separate. Even a panel facing the ideal direction still loses output if something blocks the sun at certain hours, so both need checking during a site survey.
