How to Test a Solar Panel
TL;DR
A panel is tested by measuring its open-circuit voltage (Voc) and short-circuit current (Isc) with a multimeter and comparing the readings to the numbers on its rating label. A result that's noticeably off points to shading, soiling, or a fault — but confirming and fixing the cause is usually an installer's job, not a homeowner's.
A solar panel is tested by measuring its open-circuit voltage (Voc) and short-circuit current (Isc) with a multimeter and comparing the results to the numbers printed on its rating label. A meaningful gap between what you measure and what the label says points to a problem — shading, soiling, or a fault. Confirming the exact cause, and fixing anything wired into an installed system, is usually where you hand off to a professional.
What do you actually measure?
Two numbers, both on the panel’s rear label alongside its rated wattage:
| Reading | What it is | How it’s measured |
|---|---|---|
| Voc (open-circuit voltage) | Voltage with no load connected | Multimeter set to DC volts, probes on the panel’s positive and negative leads |
| Isc (short-circuit current) | Current with leads briefly shorted through the meter | Multimeter set to DC amps, in series between the leads |
Both readings only mean something in good, direct sunlight — testing under cloud or at dawn/dusk gives artificially low numbers that look like a fault but aren’t. For background on what these terms mean and how they interact, see solar panel voltage and current explained.
What does a normal result look like?
Voc should land close to the panel’s rated open-circuit voltage, with a small drop for panel temperature — panels run hotter than the 25°C rating condition under real sun, and Voc dips slightly as temperature rises. Isc scales roughly with how strong the sunlight is at the moment you test, so a slightly hazy day will read lower than a clear one without indicating a fault.
What does a bad result point to?
A Voc that’s noticeably low for a clear-sky test suggests a cell fault, a failed bypass diode, or a wiring problem. A low Isc in strong, direct sun usually points to shading — even partial, like a wire or antenna shadow — or heavy soiling on the panel’s surface. Before assuming a fault, rule out the obvious: retest at solar noon on a clear day, and check nothing is casting a shadow on the panel. Our guide on why your solar panel isn’t working walks through the broader troubleshooting picture beyond just these two readings.
When is this safe to do yourself, and when isn’t it?

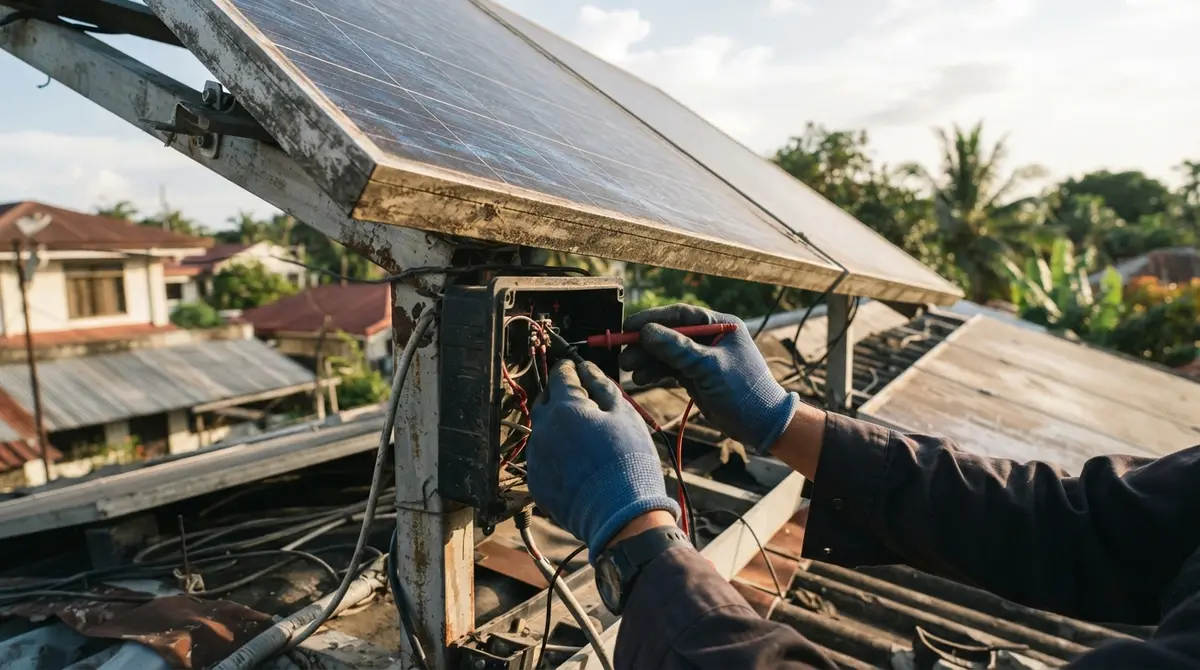

Measuring Voc and Isc directly at a panel’s own leads, before it’s wired into a string and connected to an inverter, is a contained test many people can do carefully with a basic multimeter. That changes once the panel is part of an installed array: you’re now near live DC connections that stay energized whenever there’s daylight, with no simple “off” switch. At that point, testing individual panels within a live string, or opening any wiring to isolate one, is a licensed electrician’s job.
Does panel age change what you should expect?
Yes. Panels degrade gradually over their working life, so a 10-year-old panel reading slightly below its original label numbers isn’t necessarily a fault — it may just be normal wear. Panel warranties typically guarantee around 80-85% of original output by year 25, so a small, steady shortfall that tracks with age is expected rather than alarming. See solar panel degradation and lifespan for what a normal aging curve looks like, so you can judge whether your reading fits that pattern or falls outside it.
What if the readings confirm a problem?
Photograph the readings alongside the panel’s rating label and note the time, weather, and sun angle. If the shortfall isn’t explained by shading or soiling, the next step is a visual inspection for physical defects — see how to spot solar panel defects — followed by a warranty conversation with your installer if a manufacturing fault looks likely.
The bottom line
Voc and Isc testing tells you that something’s off, not always why. Treat a bad reading as the start of a conversation with your installer, not a cue to start opening wiring or panels yourself.
Frequently asked questions
How do you test if a solar panel is working?
The standard test measures open-circuit voltage (Voc) and short-circuit current (Isc) with a multimeter, comparing the readings to the panel's rated values on its label. A big gap between measured and rated numbers points to a problem.
What is Voc and why does it matter?
Voc, open-circuit voltage, is what the panel reads with no load connected. It should sit close to the panel's rated Voc, adjusted for temperature and sunlight. A low Voc reading can point to a cell fault, damaged bypass diode, or wiring issue.
What is Isc and why does it matter?
Isc, short-circuit current, is the current the panel produces when its leads are briefly shorted through a multimeter set to measure amps. It scales with sunlight intensity, so a low reading in good sun points to shading, soiling, or cell damage rather than a bad meter reading.
Is it safe for a homeowner to test a panel with a multimeter?
Measuring Voc and Isc at the panel's own leads with a multimeter, before it's wired into a string and inverter, is a lower-risk test many people can do carefully. Testing on an installed, wired array is a different situation, since you're working near live DC connections — that's when it becomes an electrician's task.
What do I do if my readings are off?
First rule out simple causes: shading, dirt, or a cloudy moment during the test. If the gap persists across a clear-sky retest, the next step is a professional inspection rather than opening the panel or the wiring yourself — see our guide on spotting visible defects.
Can a bad Voc/Isc reading mean the panel is under warranty?
It can. A performance shortfall traced to a manufacturing fault rather than shading, soiling, or damage is typically a warranty matter. Document your readings and photos and raise it with your installer or the manufacturer.
