MPPT vs PWM Charge Controller: Which Do You Need? (Philippines)
TL;DR
MPPT charge controllers run roughly 95-98% efficient versus 75-80% for PWM, translating to 10-30% more usable power from the same panels, but they cost more. PWM works fine on small, budget off-grid setups where panel voltage closely matches battery voltage.
For most off-grid and battery-based solar setups, an MPPT charge controller is worth the extra cost: it runs roughly 95-98% efficient versus 75-80% for PWM, which translates to somewhere around 10-30% more usable power from the same panels. PWM still makes sense for small, budget setups where the panel voltage already closely matches the battery voltage, since the efficiency gap narrows there and the price difference isn’t worth it.
What does a charge controller do in the first place?

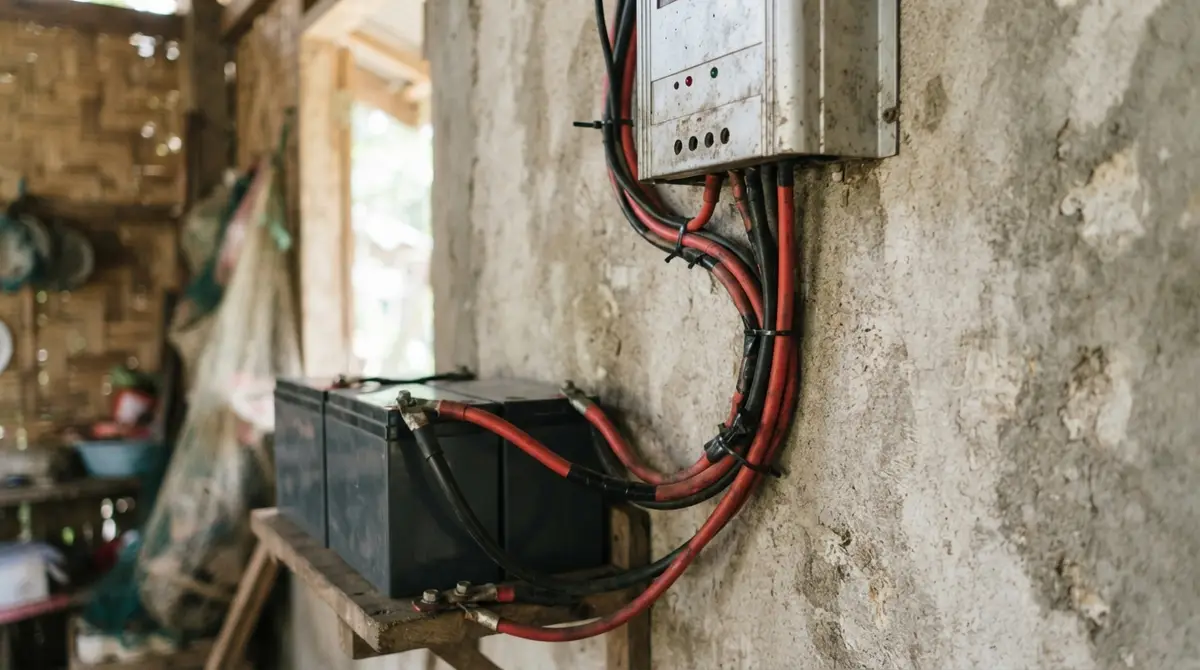

In any system that charges a battery from solar panels — off-grid systems, hybrid systems with storage — the charge controller sits between the panels and the battery and manages how power flows between them. Its main job is preventing overcharging, which can damage or shorten the life of a battery, while also regulating voltage and current so charging happens safely and efficiently. Grid-tied systems without a battery don’t use one at all, since there’s no battery to protect.
How does PWM (pulse width modulation) work?
A PWM controller connects the panel directly to the battery and simply switches the connection on and off rapidly to control charging current, which forces the panel to operate at whatever voltage the battery is sitting at rather than its own optimal voltage. If a panel’s optimal operating voltage is meaningfully higher than the battery’s voltage, that mismatch gets wasted as unused potential rather than converted into extra charging current. PWM controllers are simpler and cheaper as a result.
How does MPPT (maximum power point tracking) work?
An MPPT controller actively tracks the panel’s optimal operating voltage and current combination — its “maximum power point” — and then converts that excess voltage into additional current delivered to the battery, similar to how a DC-DC converter works. This is why MPPT captures more of a panel’s rated output than PWM, especially when panel voltage is significantly higher than battery voltage, such as pairing a 24V or higher panel string with a 12V or 24V battery bank.
How big is the real-world efficiency gap?
Published efficiency figures put MPPT around 95-98% versus PWM around 75-80%, though the practical power gain in a real system tends to land around 10-30% more usable charging power with MPPT, varying by temperature, panel-to-battery voltage mismatch, and weather. The gap tends to be largest in cooler weather and smallest in hot climates, since panel voltage rises in cold conditions and drops in heat, which shifts how much extra headroom MPPT has to work with.
| Factor | PWM | MPPT |
|---|---|---|
| Typical efficiency | ~75-80% | ~95-98% |
| Best for | Small, budget, matched-voltage setups | Larger systems, mismatched panel/battery voltage |
| Relative cost | Lower | Higher |
| Setup complexity | Simple | Slightly more configuration |
When is PWM the more sensible choice?
PWM still fits smaller or budget-limited off-grid setups, particularly when the panel’s nominal voltage already matches the battery voltage closely, like a basic 12V panel wired to a 12V battery for a simple pump or lighting setup. In that scenario, the voltage mismatch MPPT is designed to solve barely exists, so the efficiency gap shrinks and the lower upfront cost of PWM becomes the more practical option, especially for off-grid systems in provinces where budget matters more than squeezing out the last few percent of output.
Does the battery type change which controller makes more sense?
Not directly, but it affects how forgiving the setup is. LiFePO4 batteries handle charging more predictably and tolerate a wider voltage range than older lead-acid batteries, so pairing LiFePO4 with an MPPT controller is the more common setup in current Philippine installations. Our solar battery types guide covers how LiFePO4 and lead-acid batteries differ, which is worth reading alongside this if you’re speccing an off-grid or hybrid battery system from scratch.
Do I need to buy a charge controller separately?
Not always. Many hybrid inverters sold in the Philippines already have an MPPT charge controller built into the unit, so a separate controller is only needed for standalone off-grid setups or when adding a second battery bank outside the inverter’s rated capacity. Check your inverter’s spec sheet before an installer quotes you for a separate controller you may not actually need.
Frequently asked questions
What does a charge controller actually do?
It regulates how power flows from solar panels into a battery, preventing overcharging and controlling voltage and current so the battery charges safely. It sits between the panels and the battery in off-grid and battery-based systems.
What's the main difference between MPPT and PWM?
PWM directly connects panel output to the battery and simply throttles it, forcing the panel to operate at battery voltage. MPPT actively converts excess panel voltage into extra current, extracting more usable power from the same panels.
How much more power does MPPT actually deliver?
Real-world tests generally show MPPT delivering roughly 10-30% more usable power than PWM from identical panels, with the gap widening in cooler weather and when panel voltage is much higher than battery voltage.
Is PWM ever the better choice?
Yes, for small, budget-conscious off-grid setups where the panel's nominal voltage already matches the battery voltage, like a basic 12V panel on a 12V battery. The efficiency gap narrows enough there that MPPT's higher cost may not be worth it.
Do grid-tied solar systems need a charge controller?
No. Charge controllers are only relevant for systems charging a battery, whether off-grid or hybrid with storage. A pure grid-tied system with no battery doesn't use one at all.
Does the charge controller choice affect which inverter I need?
Not directly for grid-tied inverters, but for hybrid and off-grid systems, many hybrid inverters have an MPPT charge controller built in, so you may not need a separate unit at all. Check your inverter's spec sheet before buying one separately.
