Running a Deep Well or Booster Pump on Solar (Philippines)
TL;DR
A 1HP deep well pump draws roughly 1,000-1,400W running but can surge to 3,000-4,000W at startup, which is what makes pump loads tricky for solar — the inverter or controller has to handle the surge, not just the running watts. Dedicated solar-powered pump kits (self-contained DC pumps with a solar controller) sidestep the surge problem entirely and typically run ₱33,000-70,000+.
A 1HP deep well pump draws roughly 1,000-1,400W while running, but the number that actually matters for solar is the startup surge — pump motors can spike to 3,000-4,000W for a second or two when they kick on, several times their running draw. That surge is why pump loads need carefully sized equipment, whether you’re running an existing AC pump off a solar inverter or installing a dedicated solar-powered pump kit built for the job.
How many watts does a pump actually draw, by size?
Running watts scale with horsepower, but the surge is the number to design around:
| Pump size | Running watts | Typical startup surge |
|---|---|---|
| 0.5HP booster pump | ~650-900W | ~2,000-3,000W |
| 1HP deep well pump | ~1,000-1,400W | ~3,000-4,000W |
| 1.5HP deep well pump | ~1,500-1,900W | ~4,000-5,000W |
| 2HP deep well pump | ~2,100W+ | ~5,000W+ |
Booster pumps that just push water pressure through household piping are usually the smaller end of this range; submersible pumps lifting water from a deep well run bigger, since they’re also fighting the weight of the water column, not just supplying pressure.
How many panels does a household pump need?
It depends on how long the pump actually runs each day, not just its wattage — most household pumps only run an hour or two a day to fill a storage or pressure tank, not continuously.
| Pump size | Typical daily runtime | Est. kWh/month | Est. panels needed |
|---|---|---|---|
| 0.5HP booster | ~30-60 min/day | ~12-27 kWh | ~1 panel |
| 1HP deep well | ~1-2 hrs/day | ~30-85 kWh | ~1-2 panels |
| 1.5HP deep well | ~1-2 hrs/day | ~45-115 kWh | ~2 panels |
| 2HP deep well | ~1-2 hrs/day | ~65-125 kWh | ~2-3 panels |
That’s a modest addition on top of whatever your household already needs — see our how many panels to run a whole house guide for how a pump load fits into total system sizing.
Why is the startup surge such a big deal?
Because it’s what actually determines whether your solar equipment can run the pump at all. A string inverter or hybrid inverter sized only for the pump’s running watts will trip, stall, or shut down every time the motor tries to start, since the equipment sees a spike several times higher than the pump’s steady-state draw. This is the same surge problem covered in our solar for aircon guide, but pumps typically surge harder relative to their running wattage than aircon compressors do. Any inverter or controller quote for a pump-heavy household should account for surge capacity specifically, not just total wattage.
Should I run my existing pump off my house system, or get a dedicated solar pump?
There are two real options, and they solve different problems:
- Run the existing AC pump off your house solar system. Works if your inverter has enough surge headroom, and the pump just becomes another load your system covers during the day (or at night, if you’ve added a battery). Simpler if you’re already installing whole-house solar and just want the pump included.

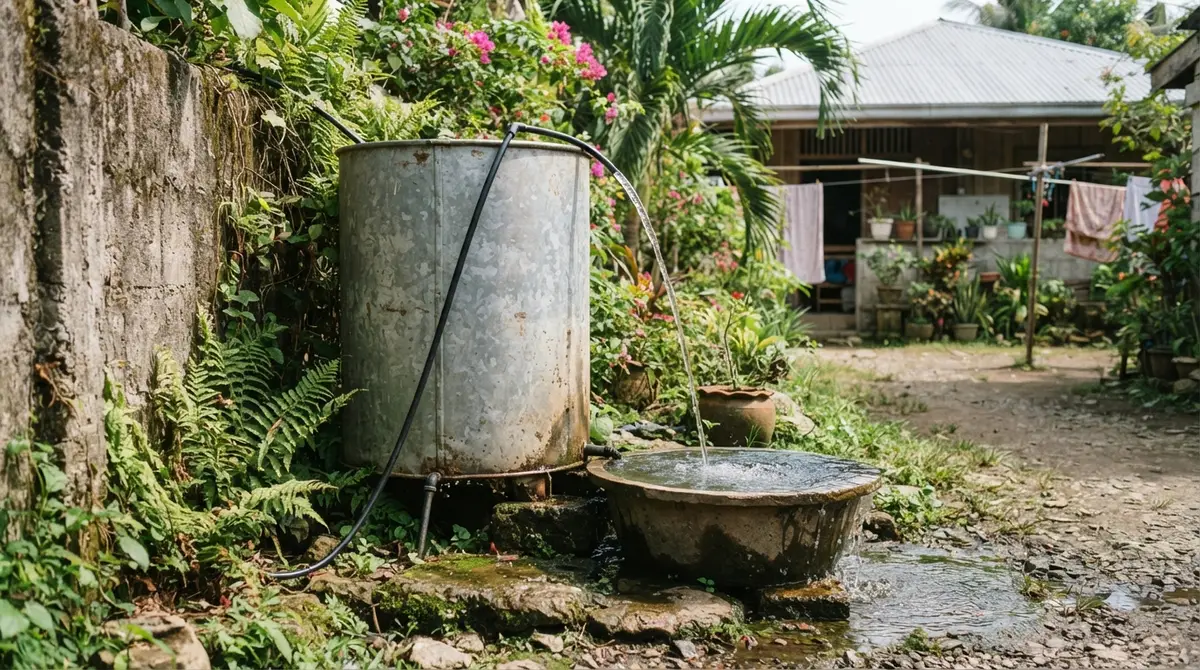

- Install a dedicated solar water pump kit. A DC pump wired directly to its own small solar array through a purpose-built pump controller, bypassing your house inverter and battery entirely. It only runs while the sun’s out, so it’s normally paired with an elevated storage tank that holds enough water for use after dark. This is the standard setup for rural properties, farms, or areas without reliable grid power — see our off-grid solar in the provinces guide for how pump-plus-tank setups fit into fully off-grid properties.
How much does a dedicated solar water pump system cost?
Small DC solar pump kits under 1HP start around ₱33,000, scaling up to roughly ₱65,000-70,000 or more for larger deep-well systems with bigger panel arrays and higher-capacity controllers, depending on how deep the well is and how much flow you need. Prices vary by brand, head height (depth plus elevation the pump has to push water), and flow rate, so treat these as a starting range to check quotes against rather than a fixed number.
Do I need a battery just for the pump?
Usually not. Since a dedicated solar pump system just fills a storage tank during the day, the tank itself acts as the “storage” — you draw from it by gravity or a small booster pump whenever you need water, day or night. A battery only becomes relevant if you specifically need the pump itself to run on demand after dark or during a brownout rather than relying on stored tank water. See our is a solar battery worth it guide for when that added cost is worth it versus just sizing a bigger storage tank.
Frequently asked questions
How many watts does a deep well pump use?
A 1HP deep well submersible pump typically runs at 1,000-1,400W continuous, a 1.5HP unit at 1,500-1,900W, and a 2HP unit at 2,100W or more. Booster pumps for water pressure are usually smaller, often 0.5HP or under.
Why does pump startup surge matter for solar?
Because motors draw far more power kicking on than they do running — often 3 to 5 times their running wattage for a second or two. A solar inverter or charge controller sized only for running watts can trip or fail every time the pump starts, so surge capacity matters more than average consumption when sizing equipment.
Can I run my existing pump off my house solar system?
Yes, if your inverter is sized to handle the startup surge, not just the running watts. A hybrid inverter with enough surge capacity, paired with either grid power or a battery for backup, can run a standard AC well pump the same as any other appliance.
What is a dedicated solar water pump?
A self-contained system where a DC pump draws power directly from its own solar panels through a specialized pump controller, without going through your house's main solar inverter or battery. It only pumps while the sun's out, which is why it's usually paired with an elevated storage tank.
Do I need a battery to run a water pump on solar?
Not necessarily. A dedicated solar pump system works fine without a battery since it just fills a storage tank during daylight hours. A battery only matters if you need the pump to run on demand at night or during a brownout.
How much does a solar water pump system cost in the Philippines?
Small DC solar pump kits (under 1HP) start around ₱33,000, while larger deep-well solar pump systems with bigger panels and controllers can run ₱65,000-70,000 or more, depending on head height and flow rate needed.
