How a Solar Panel Connects to an Inverter
TL;DR
Panels connect to an inverter through DC cables and connectors that carry live voltage any time there's daylight, matched to strict positive/negative polarity. Understanding the concept is useful; making the connection yourself is not — this is licensed-electrician work because a mistake can damage equipment or cause a shock or fire hazard.
A solar panel connects to an inverter through DC cabling and connectors, wired in a strict series string with matched positive and negative polarity. That’s the concept. Making this connection yourself on a rooftop array is not something we’re going to walk you through, because the array is live with DC voltage any time there’s daylight and this is licensed-electrician work.
What does the connection actually look like?

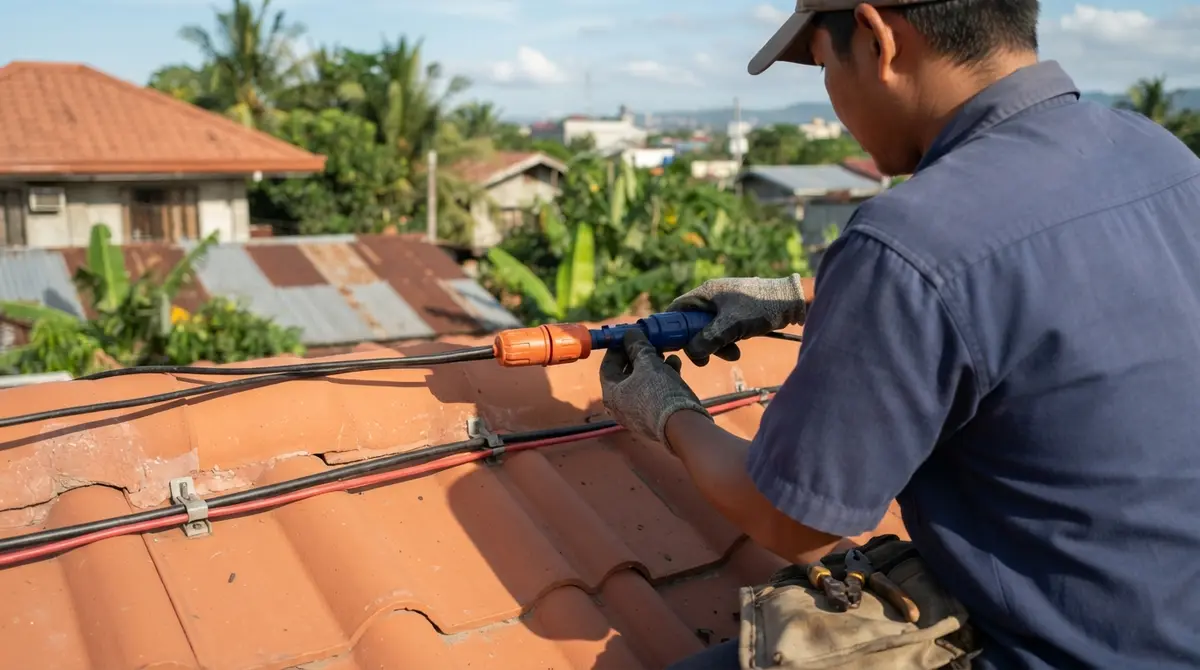

Individual panels have a positive and negative lead, usually terminated in MC4-style connectors. Installers wire panels together into a string — several panels in series — and that string’s combined output runs through DC cable to an input on the inverter. The inverter takes that DC power and converts it to AC, either feeding your house circuits, exporting to the grid, or both depending on the inverter type. Our wiring and setup diagram guide shows how this fits into the whole system, from array to breaker panel.
Why does polarity matter so much?
Every connector is keyed so a positive lead only mates with a matching negative one, which prevents most accidental reversals. But damaged connectors, non-matching brands, or a rushed install can still create a wrong connection. Reversed polarity can damage the inverter’s input circuitry, trip its protection, or in a worst case create a short with arcing — one of the mechanisms behind solar panel fire risk. This is one reason installers use matched, brand-consistent connectors rather than mixing parts.
Why is this DC-live warning not boilerplate?
Because it changes what “safe” means here. Your house’s AC wiring can be de-energized at the breaker before anyone touches it. A solar panel has no equivalent switch — it generates voltage the moment light hits the cells, whether the inverter is on, off, or disconnected. That’s true during installation, a repair, or a brownout. The DC side of a solar array should be treated as always live, which is exactly why sizing the protective breaker correctly matters — see DC breaker sizing — and why the physical connection work is a licensed electrician’s job.
How does a string differ from a whole array?
A single string is one series chain of panels feeding one DC input. Many home systems run multiple strings, especially once the array grows past what one string can efficiently carry, and each string terminates at its own input on the inverter or at a combiner box upstream of it. This matters for troubleshooting: an installer diagnosing a production drop will often check string by string rather than treating the whole array as one block, because a fault on one string doesn’t necessarily affect the others. It’s also why panel count and layout — how many panels per string, how the roof area is split up — is a decision made during system design, not something to improvise after panels are already on the roof.
What’s safe to check yourself vs. what isn’t?
| Task | Homeowner-safe? |
|---|---|
| Reading the inverter’s display or app | Yes |
| Resetting a tripped AC breaker | Yes |
| Visually checking panels for damage from the ground | Yes |
| Touching a DC connector or combiner box | No |
| Opening the inverter casing | No |
| Reconnecting a loose panel-to-inverter cable | No |
If troubleshooting takes you past the display and the breaker panel, stop. That boundary is covered in more depth in is DIY solar legal in the Philippines, which also explains why net metering approval requires a licensed PEE to have done or supervised this exact connection.
The takeaway
Understanding how panels wire into an inverter helps you have an informed conversation with your installer and make sense of what a site survey or quote is describing. Actually making that connection, or touching it after the fact, belongs to a licensed electrician — the DC side doesn’t forgive mistakes the way a de-energized AC circuit does.
Frequently asked questions
How does a solar panel physically connect to an inverter?
Panels are wired in series into a string using DC cables and MC4-style connectors, and that string runs to a DC input on the inverter. The inverter converts the DC output into AC power your house or the grid can use.
What is DC polarity and why does it matter?
Every panel and connector has a positive and negative side. Reversing polarity when connecting a string can damage the inverter, trip protection circuits, or in the worst case create a short with sparking. Connectors are keyed so matching pairs only join one way, but mismatched or damaged connectors can still be forced.
Is the DC wiring dangerous to work on?
Yes. Unlike your house's AC wiring, which you can de-energize at the breaker, a panel produces DC voltage any time it's exposed to daylight. There's no simple 'off' switch on the array itself, which is why this work is licensed-electrician territory.
Can I connect a panel to a small portable inverter myself?
A small, standalone setup like a portable power station with a folding panel is generally fine for a homeowner, since it's low voltage and doesn't touch your house wiring or the grid. A rooftop array feeding a home inverter is a different scale of risk entirely.
What's the difference between a string inverter and a hybrid inverter connection?
Both take DC input from panel strings, but a hybrid inverter also connects to a battery and can island your home during a brownout, which adds more wiring and more configuration that needs to be done correctly by a professional.
When should I stop and call an electrician?
Before you touch any DC wiring, connector, or the inside of an inverter. If you're troubleshooting and it goes beyond checking the display or resetting a breaker, that's the point to call a licensed electrician rather than continue yourself.
