Solar Panel Bypass Diodes Explained

A bypass diode is a small electrical component built into every solar panel that gives current a way around a shaded or faulty section of cells instead of forcing it through them. Most residential panels have three, each covering a third of the panel’s cells, wired to activate only when needed.

What does a bypass diode actually do?

Panel cells are wired in series inside the panel, so current has to pass through every cell in sequence. If one cell in that chain is shaded, cracked, or faulty, it can’t pass as much current as the rest, and without a bypass diode the healthy cells would be forced to push their full current through that one weak point anyway. The diode gives current an alternate path around that section instead, so the rest of the panel keeps producing rather than being throttled by its weakest cell.

Why does this matter so much on Philippine roofs?

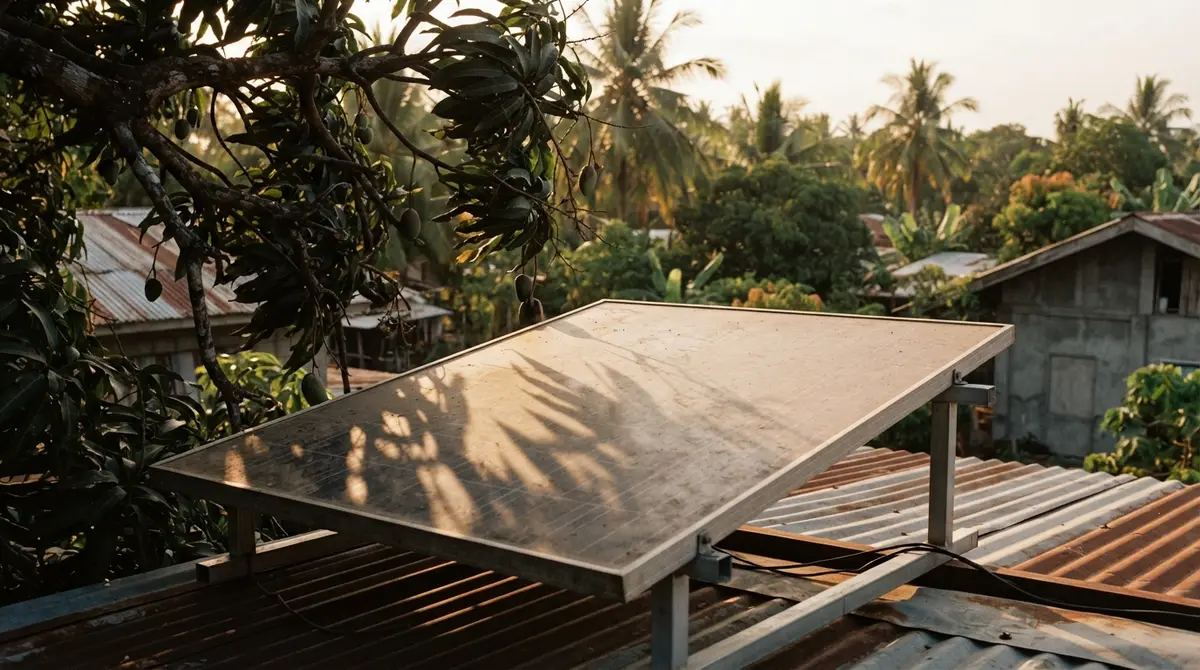

Because partial shade is common here, not rare. Water tanks, vents, aircon condensers, and neighbouring structures cast shadows across parts of a panel at different times of day, and without bypass diodes that shade would cost far more output than the shaded area alone suggests. See how shading affects solar output for how a single shaded panel can otherwise drag down an entire string. Bypass diodes limit that damage at the panel level before it compounds at the string level.

Does a bypass diode eliminate the shading loss?

No, it manages it rather than removing it. When a diode activates, the section of cells behind it stops producing entirely for as long as the shade lasts, so that portion of the panel’s output is genuinely lost. What the diode prevents is something worse: those healthy cells being forced to dissipate power as heat instead of just losing output. Half-cut cell panels build on this idea by splitting each panel into two independently protected halves, so shade on one half doesn’t require bypassing the whole thing.

What happens when a bypass diode fails?

A failed diode is one of the less visible faults a panel can develop, and it removes protection quietly. If shade then falls on cells behind a failed diode, current has nowhere to go except through the shaded cells anyway, which forces them to dissipate power as heat instead of routing around the problem. That’s the same mechanism behind a solar panel hot spot, and sustained heat at one point on a panel is a genuine safety issue, not just a performance loss.

Can you tell if a diode has failed?

Not by looking at the panel from a distance. A failed diode usually shows up as an unexplained output drop from one panel, confirmed with a thermal camera during a proper inspection, or as visible discolouration on the panel’s back if the fault has already caused heat damage. This isn’t something a homeowner can diagnose from the ground, which is another reason unexplained output drops are worth reporting to your installer rather than waiting out.

What does this mean for you as a homeowner?

You don’t choose or maintain bypass diodes yourself — they’re built into every panel from the factory and sealed inside the junction box. What’s worth knowing is that they’re a real safety feature, not a marketing detail, and that persistent shade on the same part of your array puts them to work daily. If your roof has any recurring shade, ask your installer how the array layout accounts for it, and treat any unexplained per-panel output drop as worth investigating rather than ignoring.
