Solar Panel Junction Box Explained

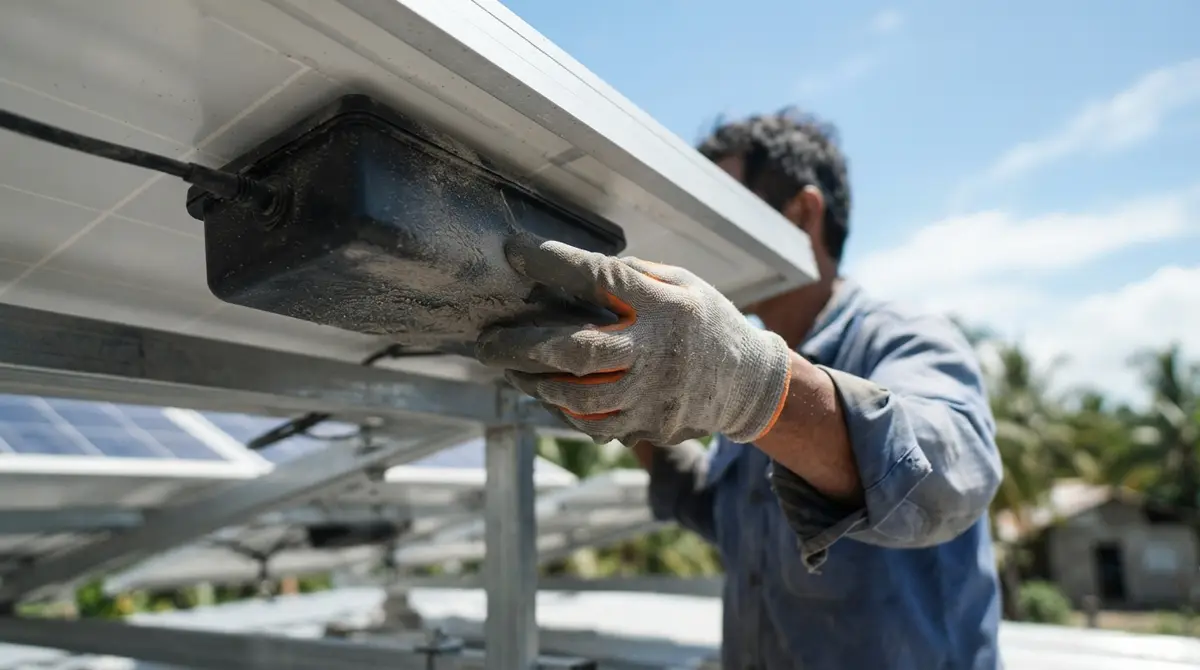

The junction box is the small, sealed enclosure mounted on the back of every solar panel, and it’s where the panel’s internal wiring meets the outside world. Every panel has one, it’s not optional equipment, and it quietly does two jobs: housing the panel’s bypass diodes and providing the sealed connection point for the output cables that run to the next panel or the inverter.

What does a junction box actually do?

Inside the panel, cells are wired together in strings during manufacturing. The junction box is where those internal strings terminate and connect to the external cables, the same cables that end in MC4 connectors linking one panel to the next. It’s the transition point between the panel’s sealed internal wiring and the exposed cabling that an installer routes and connects on site.

What’s inside the box besides the wiring?

The panel’s bypass diodes live inside the junction box. These are the components that reroute current around a shaded or faulty section of cells instead of forcing current through them, and they need to sit as close as possible to the cells they protect, which is exactly where the junction box is positioned.

Why does weatherproofing matter this much?

Because the junction box sits exposed on a roof for the panel’s entire life, roughly 25 years of sun, rain, and heat, sealing live electrical connections the whole time. It’s rated to a specific ingress protection standard so moisture can’t reach the diodes or the terminal connections inside. A junction box that loses its seal lets water in, and water on live DC connections is both a performance problem and a safety one.

What causes a junction box to fail?

The usual causes are age and heat: the sealing gasket and adhesive degrade over decades of UV and thermal cycling, or a failed bypass diode inside overheats and damages the box itself. Physical damage during installation, transport, or from birds and pests nesting near the box can also compromise the seal earlier than expected. See solar panel hot spots for how heat building up at one point, including inside a junction box, becomes a genuine fire risk rather than just an output issue.

What are the warning signs to look for?

• Visible cracking, melting, or discolouration of the box’s plastic casing
• Corrosion or a white/green residue around the cable entry points
• A panel that drops in output with no shading, dirt, or weather explanation
• Any burning smell near the array

None of these are something to inspect up close yourself. Report them to your installer, and see solar panel maintenance in the Philippines for what a routine check should cover and why panels themselves need so little day-to-day attention.

Can a failing junction box be repaired?

Rarely worth it in practice. Junction boxes are sealed at the factory as part of the panel, so a compromised one is usually a case for a warranty claim on the whole panel rather than a field repair. If your panel is still within its warranty period and shows any of the signs above, raise it with your installer or the manufacturer promptly rather than waiting, since delay generally weakens a claim.

Is this something to ask about when comparing quotes?

Not usually at the level of brand or model, since junction box quality tends to track overall panel build quality rather than being a separately marketed feature. Where it’s worth asking is broader: whether the panels on offer come from a reputable, tier-1 manufacturer with a track record and a serviceable warranty, since that’s what stands behind the junction box, the diodes inside it, and every other sealed component if something does go wrong years into ownership. A panel that’s cheap because it cut corners somewhere often cut them here too, even if the junction box itself is never mentioned on the spec sheet you’re handed.
